Tensile Strength Testing Machine Tensile Testing Equipment Price for Wire

FOB Reference Price:Get Latest Price
$3,000.00 - $7,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Usage:
Tensile Testing Machine
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TEST
Model Number:
TT-B604B-S
Power:
Electronic
Usage:
Tensile Strength Test Machine
Motor:
Panasonic Servo Motor
Max. Stroke:
1000mm (excluding fixture)
Accuracy:
±0.5%
Resolution:
1/250,000
Weight:
Approx.200kg
Unit:
G, KG, N, LB
Sensor:
Celtron load cell
Screw:
High Precise Ball Screw
Test Speed:
0.1-500mm/min (adjustable)
Supply Ability
Supply Ability:
18 Piece/Pieces per Month Wire Tensile Strength Testing Machine Price
Packaging & Delivery
Packaging Details
Each set Wire Tensile Strength Testing Machine Price protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside
Port
Yantian, Shenzhen, Hongkong, Shanghai



Tensile Strength Testing Machine / Tensile Testing Equipment Price for Wire 2017 Hot New Products



Product Description



1.description

This series of Tensile Strength Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force, ect with different fixtures according to national and international standards customer required.





2.test principle

Tensile Strength Testing Machine is a kind of electric tensile test which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.





3.Main Technical Parameter Of Tensile Strength Testing Machine :

 The table parameters for the company Standard Model parameters, we support customer customization parameters

Item

Description

Max. Force

2000 kg (20KN)

Load cell

Germany brand load cell for high accuracy

Control system

PC with windows 7 system

Motor

Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Stroke

1200mm including fixture

Load cell Resolution

1/250,000

Load Precision

≤0.5%

Test speed

0.1~500mm/min (adjustable by PC)

Test width

≤400mm

Software

TM 2101

Curves display

Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat





4.Features Of Tensile Strength Testing Machine :



·  Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).



·  Data transmissionRS232.



·  Displacement resolution: 0.001mm.



·  Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.



·  Graph scale automatic optimization can make graph to display with best measurement and can implem- ent graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.



·   Tensile Testing Machine can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.



·   User can set parameters of product material such as length, width, thickness, radius, area and so on.

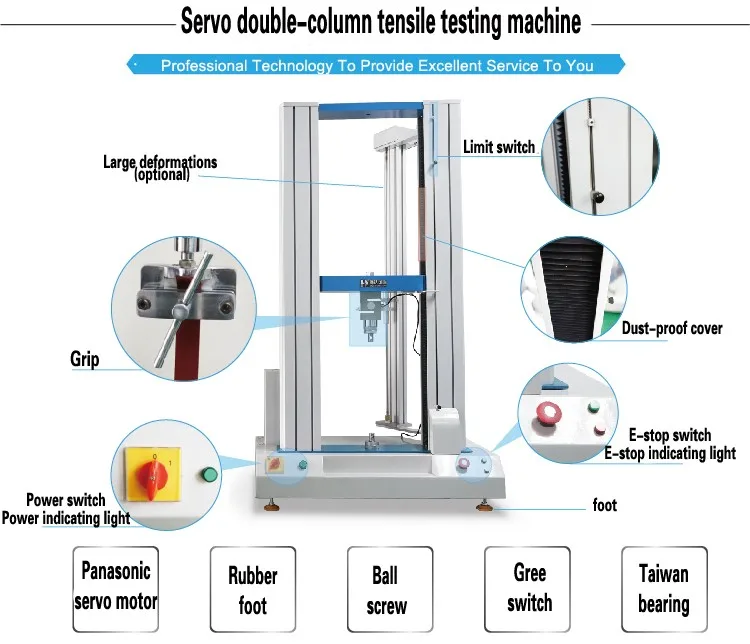

5.View Of  Tensile Strength Testing Machine:




Sample parts

 universal tensile testing machine

Tensile tester
